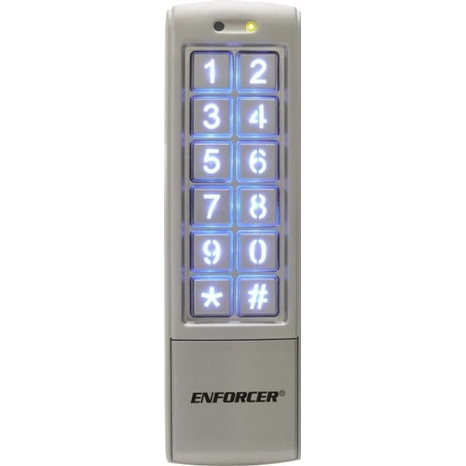

Stand-Alone Weatherproof Keypad
Web N°: 14-0040
$169.95
Stand-Alone Weatherproof Keypad
Web N°: 14-0040
$169.95
Description
- 12~24 VAC/VDC operation
- 1,010 Users (Output #1: 1,000 users, Output #2: 10 users)
- 2 Form C relays, each rated 1 Amp @ 30VDC
- Each relay has programmable output time from 1~99 seconds or toggle Output #2 can be programmed for use with a doorbell
- 2 Egress inputs and 1 door sensor input
- Backlit keys for easy nighttime use
- 2 Multi-colored status LEDs
- Able to mount to a single-gang back box
- All features are programmed directly from the keypad
- no need for an external programmer - EEPROM memory protects programmed information in case of power loss
- Optical tamper sensor for added security
- Circuitry is potted with epoxy for outdoor use IP65 weatherproof rating, rugged aluminum construction
- Operating Voltage: 12~24 VAC/VDC
- Standby Current Draw: 40mA@12VDC
- Active Current Draw: 70mA@12VDC
- Relay Outputs: 1A@30VDC, Form C, NO/COM/NC
- Egress Inputs: 2, N.O.
- Ground Door Sensor Input: N.C.
- Ground Tamper Sensor: Optical
- Operating Temperature: -4°~122° F (-20°~50° C)
- Keypad LED Life: 60,000 hours (over 6.8 years)
- Weight: 11-oz (312g)
- Dimensions: 6"x1-3/4"x15/16" (152x44x24 mm)
