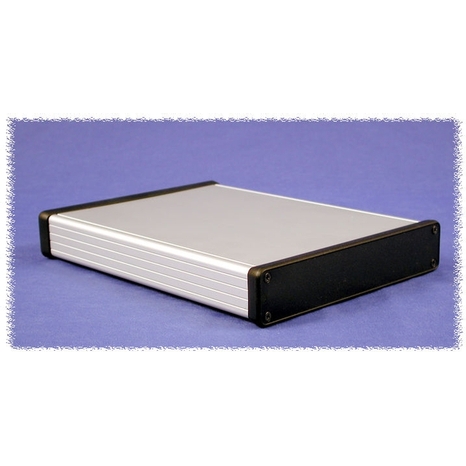

1455A1202 - Extruded Aluminum Instrument Enclosure - Grey

Description

• Designed to house P.C. boards or for equipment interfacing.
• Sized for standard Eurocards. P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body.
• Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm).
• Rounded for better hand held ergonomics Two easy to machine, black solid ABS plastic end panels with integral bezel
• Extruded, anodized aluminum body Includes all hardware
  - end panel screws are #6 x 3/8" TTT
  - thread rolling, steel screws with a #4 flat head phillips drive
• with black zinc plate finish.
• Self adhesive rubber feet
• Dimensions: 4.72" L x 2.76" W x 0.47" H (120 x 70 x 12 mm)
