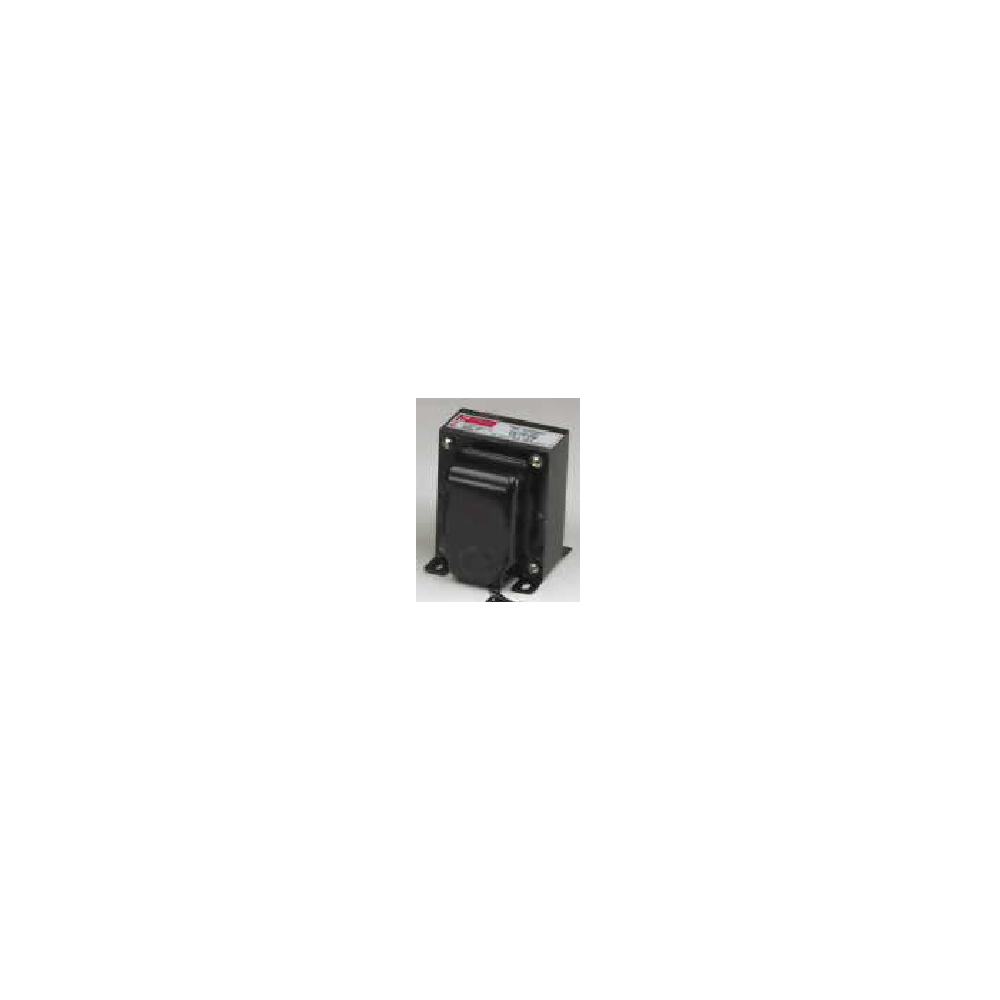

Audio Transformer 50W RMS 3,400ct 318 ma.
HAMMOND
Web N°: 40-0120
$169.95
Audio Transformer 50W RMS 3,400ct 318 ma.
HAMMOND
Web N°: 40-0120
$169.95
Description
- Designed for push-pull tube output circuits.
- Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
- Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
- Insulated flexible leads 8" min.
- Manufactured with plastic coil forms for coil support and insulation.
- Typical applications - Push-Pull: triode, Ultra-Linear pentode, pentode and tetrode connected audio output.
- Due to the unique interleaving of the windings BOTH secondary windings must be engaged to meet specifications (see hook-up diagrams below).
