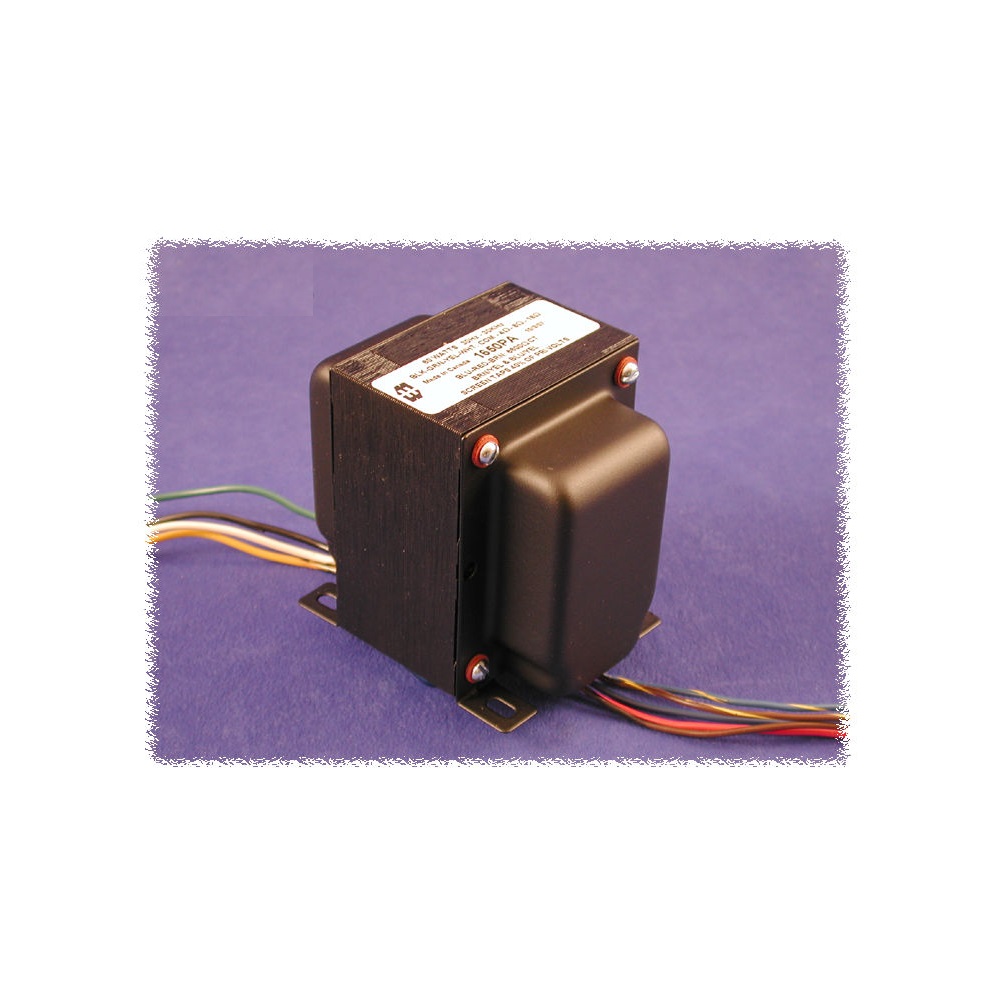

Audio Transformer 40W RMS 6,600ct 200ma.
HAMMOND
Web N°: 40-0119
$199.95
Audio Transformer 40W RMS 6,600ct 200ma.

Audio Transformer 40W RMS 6,600ct 200ma.

HAMMOND
Web N°: 40-0119
$199.95

Quantity available : 1

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Designed for push-pull tube output circuits.
  • Units are designed to provide ample "headroom" at bass frequencies (note the weight of each transformer).
  • All models have a secondary tapped for 4, 8 or 16 ohm outputs.
  • Enclosed (shielded), 4 slot, above chassis Type "X" mounting.
  • Manufactured with plastic coil forms for coil support and insulation.
  • Frequency response 30 Hz. to 30 Khz. at full rated power (+/- 1 db max. - ref. 1 Khz) minimum.
  • Insulated flexible leads 8" min.
  • All units include 40% screen taps for Ultra-Linear operation (if desired).
