USB AA Male/Female 2.0 Active Extension Cable
Web N°: 33-0388 33-0389 33-0390
Not available
USB AA Male/Female 2.0 Active Extension Cable
USB AA Male/Female 2.0 Active Extension Cable
USB AA Male/Female 2.0 Active Extension Cable
USB AA Male/Female 2.0 Active Extension Cable

USB AA Male/Female 2.0 Active Extension Cable

Web N°: 33-0388 33-0389 33-0390

$49.95

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

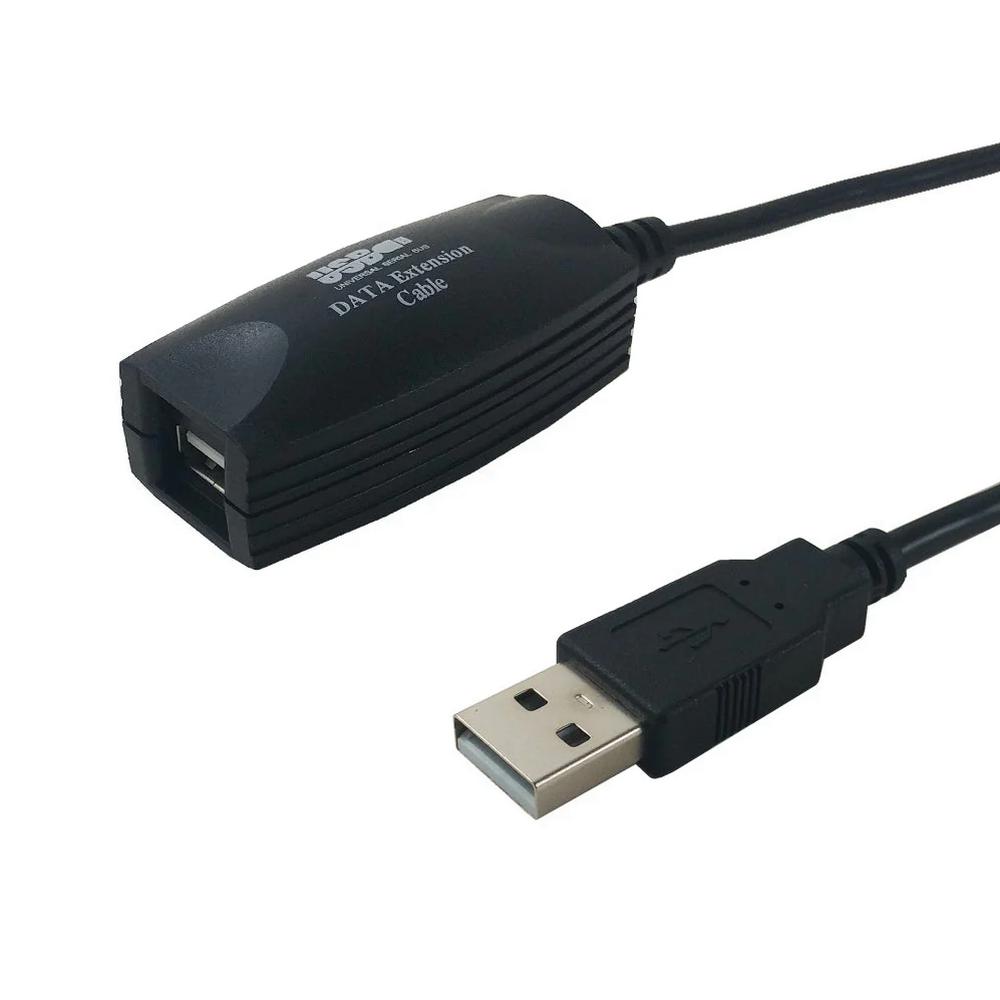

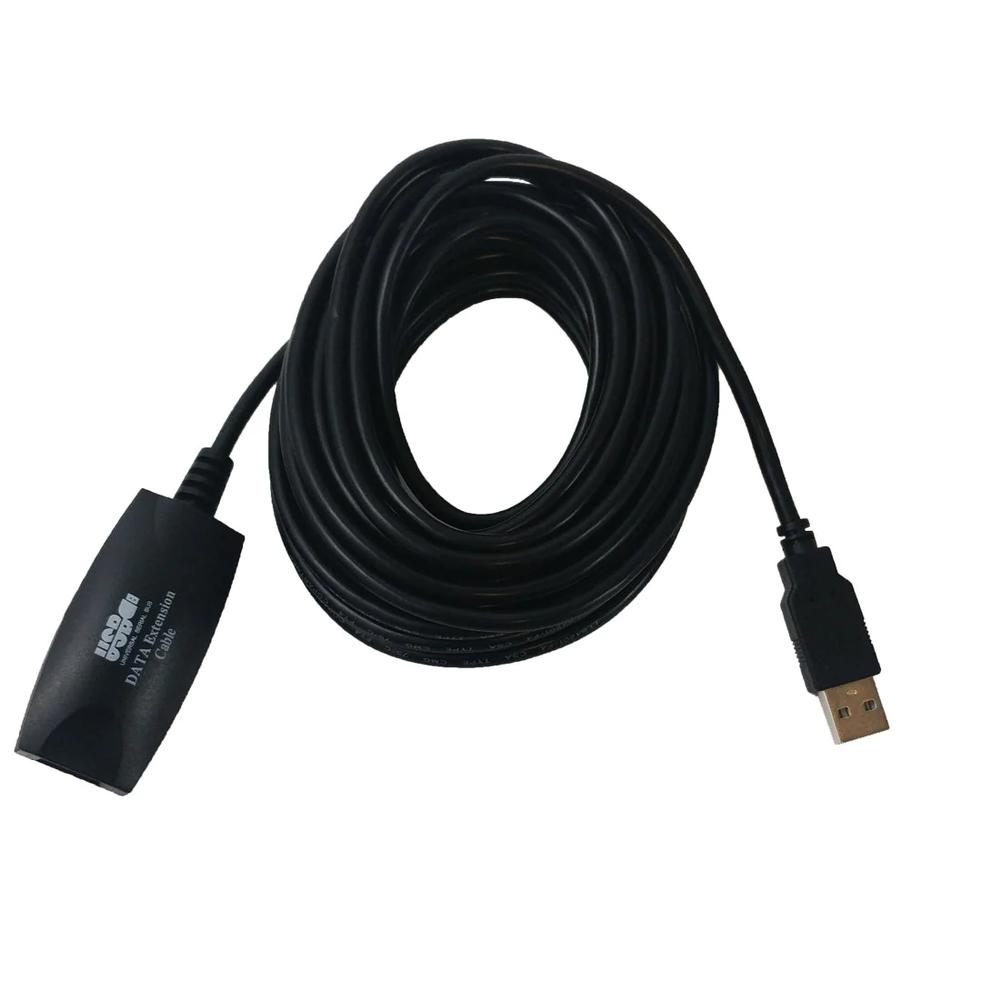

This active USB extension cable consists of a USB A male on one end and a USB A female on the other end. It is used to extend the distance between a USB 2.0 device and a computer. Unlike passive extension cables, this USB active extension cable has bus powered circuitry which enables it to reach distances beyond the length limits of standard passive USB cables.

This cable is directional and will only work when the male end is connected to the computer and the female end is connected to the device.

NOTE: Only the 16ft cable supports cascading with 1x1 connection.

Physical Characteristics
Color Black
Connector Plating Nickel
Cable Diameter 4.5 mm
Wire Gauge 28AWG Data, 24AWG Power
Jacket Material PVC - Polyvinyl Chloride
Jacket Rating CMG, FT4 Riser
Cable Shielding 100% Aluminum-Mylar Foil, 65% Tinned Copper Braid
Strain Relief Molded PVC
Temperature Rating 75?
Connector(s)
Connector A USB 2.0 Type A Hi-Speed Male
Connector B USB 2.0 Type A Hi-Speed Female
Repeater (USB-E50) Located directly in middle of cable - 25ft from either end
Performance
Rating USB 2.0 Hi-Speed Compliant Cable
Speed 480 Mbps
Compatibility
Windows Windows 98, ME 2000/XP, Vista, 7, 8, 10
Apple Mac OX 9 and OS X
Linux, Unix Yes
Approvals
UL Yes
Download the document (PDF)
