Description

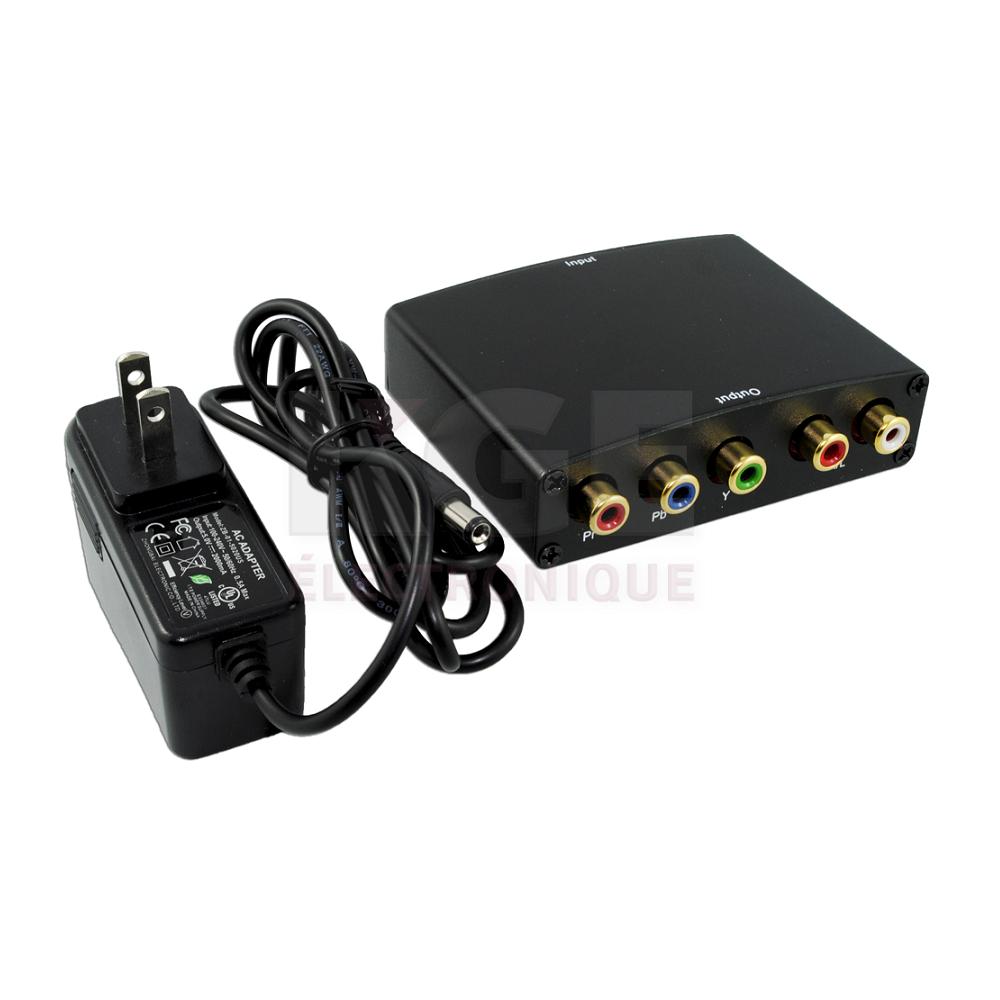

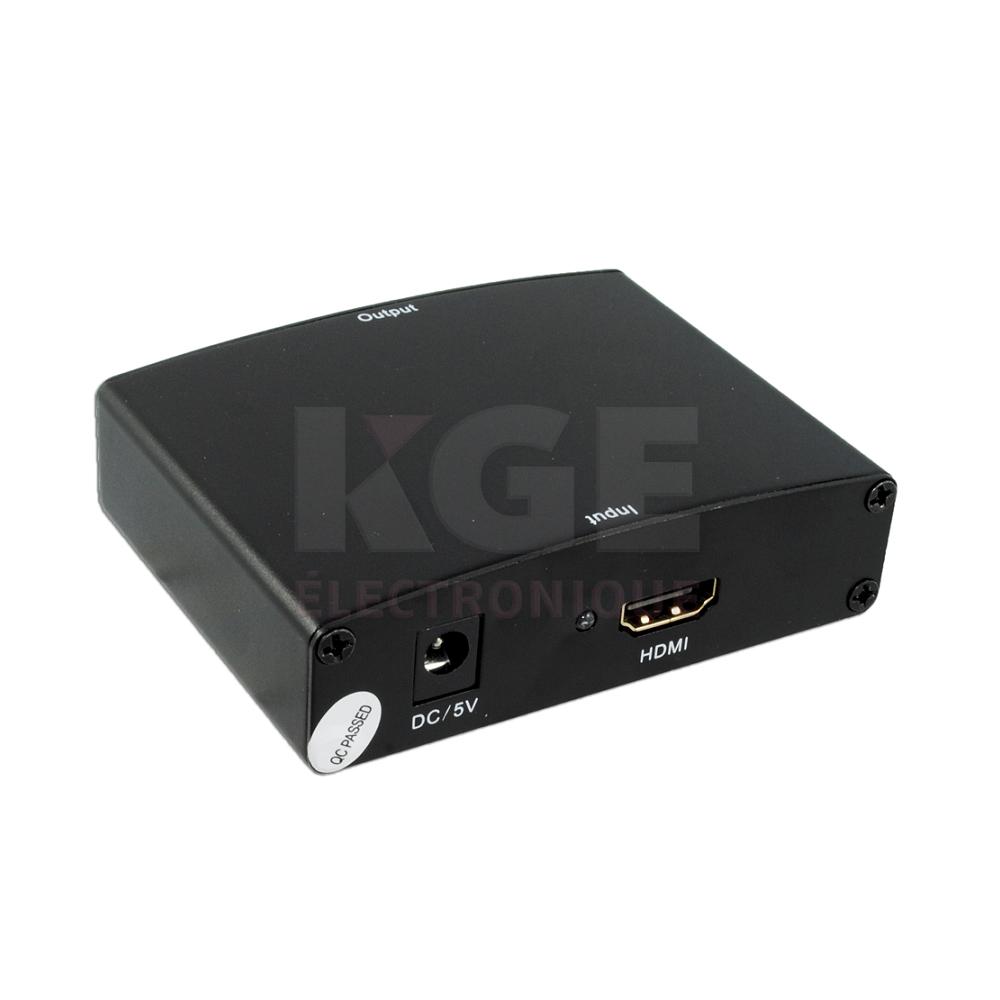

Converts HDMI input into analog YPbPr video and R/L audio signal. The converter allows the viewer to enjoy their high definition image and sound on the traditional YPbPr monitors or projectors.
- Easy to Use: Install in seconds, no need of setting.
- Conversion: It could convert complete HDMI into YPbPr video and R/L audio output.
- Support HDCP 1.2
- Support 165MHz/1.65Gbps per channel (6.75Gbps all channel) bandwidth for HDMI Input.
- Supports Analogue Video output up to UXGA and 1080p with 10-bit DAC
- Input Video Signal: 0.5-1.0 volts p-p
- Input DDC Signal: 5 volts p-p (TTL)
- Input connection: HDMI A female(19pin)
- Output connection: YPbPr, R/L
- HDMI video input format: 480i/576i/480p/576p/720p/1080i/1080p
- YPbPr video output format: 480i/576i/480p/576p/720p/1080i/1080p
- Vertical Frequency Range: 50/60Hz
- Input Video Amplifier Bandwidth: 1.65Gpbs/165MHz
- Size(W-H-D): 88mmW x 25.5mmH x 68mmD
- Weight(Net): 0.68kgs
- Operating Temperature: 0 °C to +70°C
- Operating Humidity: 10% to 85 % RH (no condensation)
- Storage Temperature: -10°C to +80°C
- Storage Humidity: 5% to 95 % RH (no condensation)
- External Power Supply: 5V DC@2A
- Power consumption (Max): 5W
Package Contains:
- 1 x Converter
- 1 x Power Adapter
- 1 x User Manual
