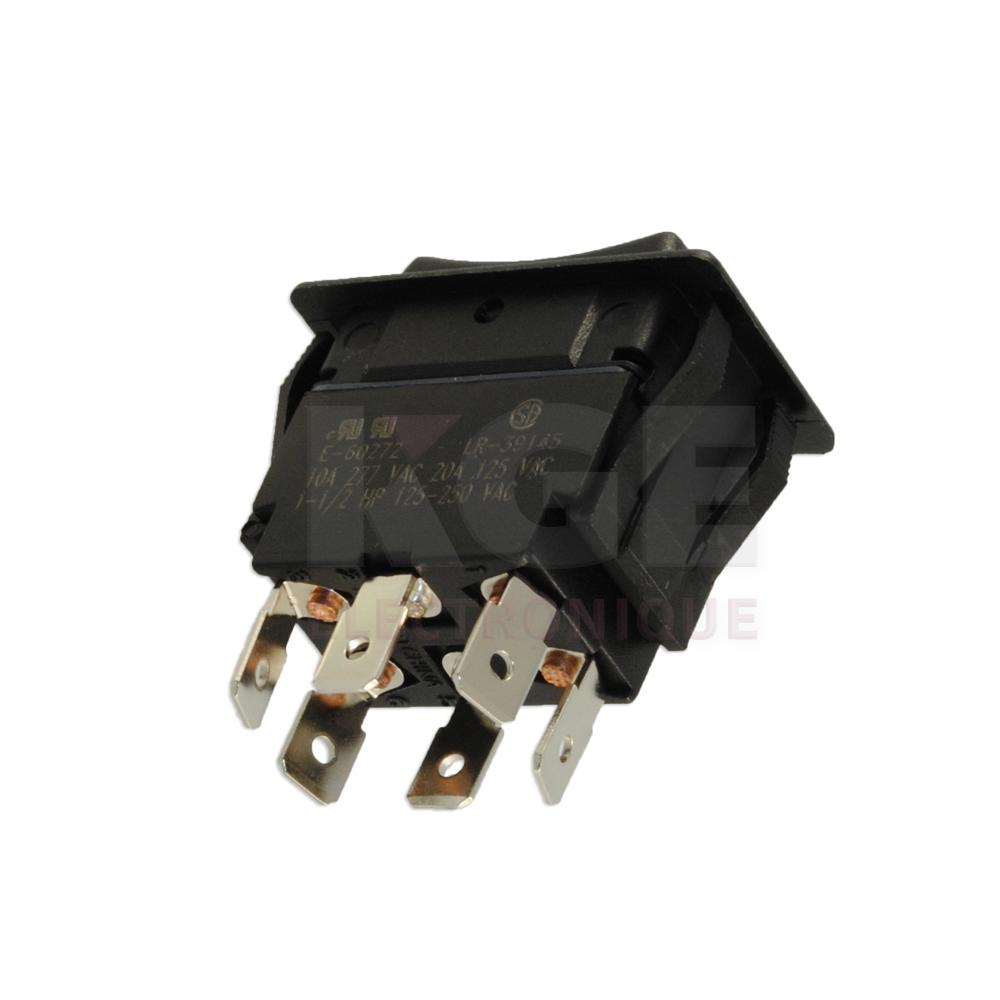

Heavy Duty DPDT Rocker Switch( ON)/OFF/(ON) Momentary)
Web N°: 25-4007
$19.95
Heavy Duty DPDT Rocker Switch( ON)/OFF/(ON) Momentary)
Web N°: 25-4007
$19.95
Description
- Current Rating: 20A@ 125V AC, 10A@ 277V AC, 1-1/2 HP @ 125-250V AC
- Initial Contact Resistance: 5 Meg ohm (Max.)
- Insulation Resistance: 100 Meg ohm (Min.)
- Dielectric Strength: 1000V AC for 1 minute
- Gasket: Molded Elastomer
- Case: UL94 Flame Class, 94V-2
- Contact Material: Brass
- Terminal Material: Brass
- Terminal Type: .250” Quick Connect
- Actuator: Black Nylon
- Moisture and Dust Resistant
