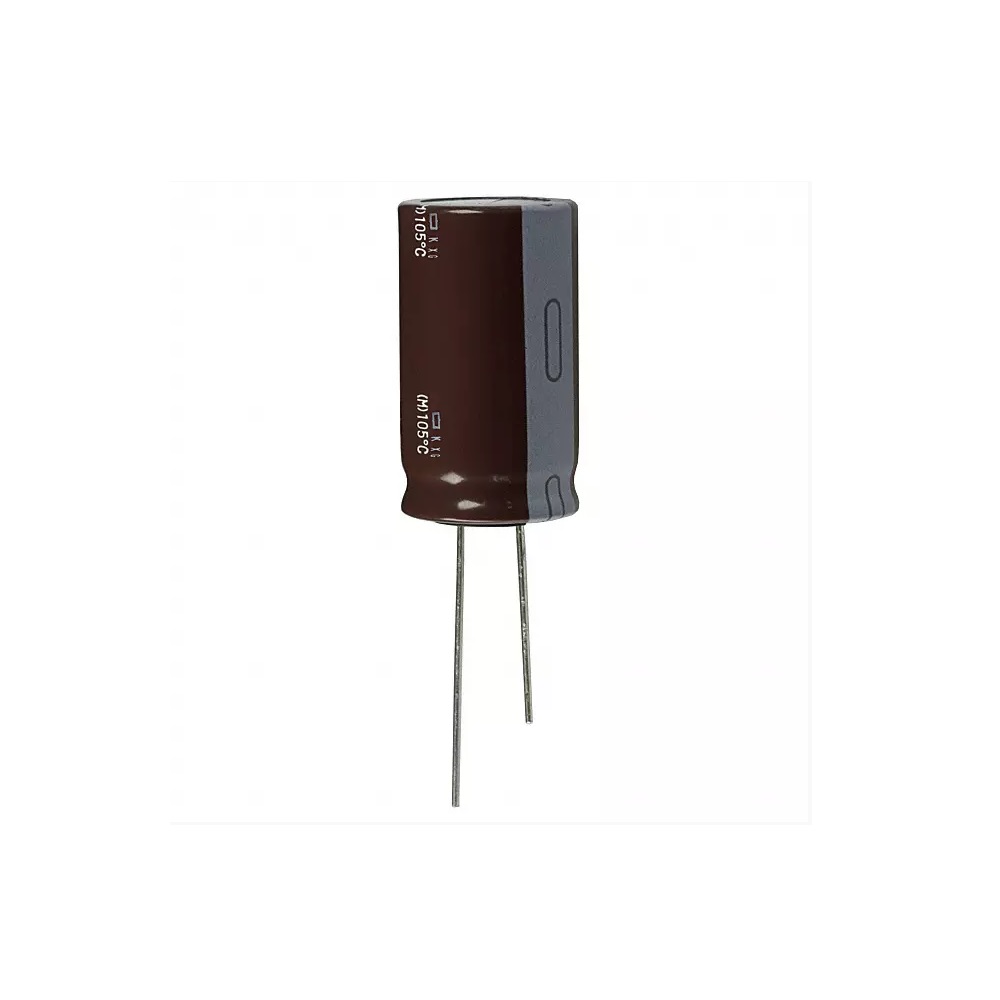

Capacitor Alum 68uF 20% 450V Radial
Web N°: 25-2159
$9.95
Capacitor Alum 68uF 20% 450V Radial
Web N°: 25-2159
$9.95
Description
Capacitance 68µF
Tolerance ±20%
Voltage - Rated 450V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 10000 Hrs @ 105°C
Operating Temperature -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 630mA @ 120Hz
Ripple Current @ High Frequency 1,575A @ 100kHz
Lead Spacing 0.295" (7.50mm)
Size / Dimension 0.709" Dia (18.00mm)
Height - Seated (Max) 1.240" (31.50mm)
