Smart Motor Robot Car Chassis Battery Box Kit Speed Encoder For Arduino

Description

• 2 DC gear motors , Motor reduction ratio of 48:1
• Speed selection button
• Holes for all kinds of modules.
• Obstacle avoidance, distance testing, speed testing, wireless remote control
• Convenient installation, firm and reliable

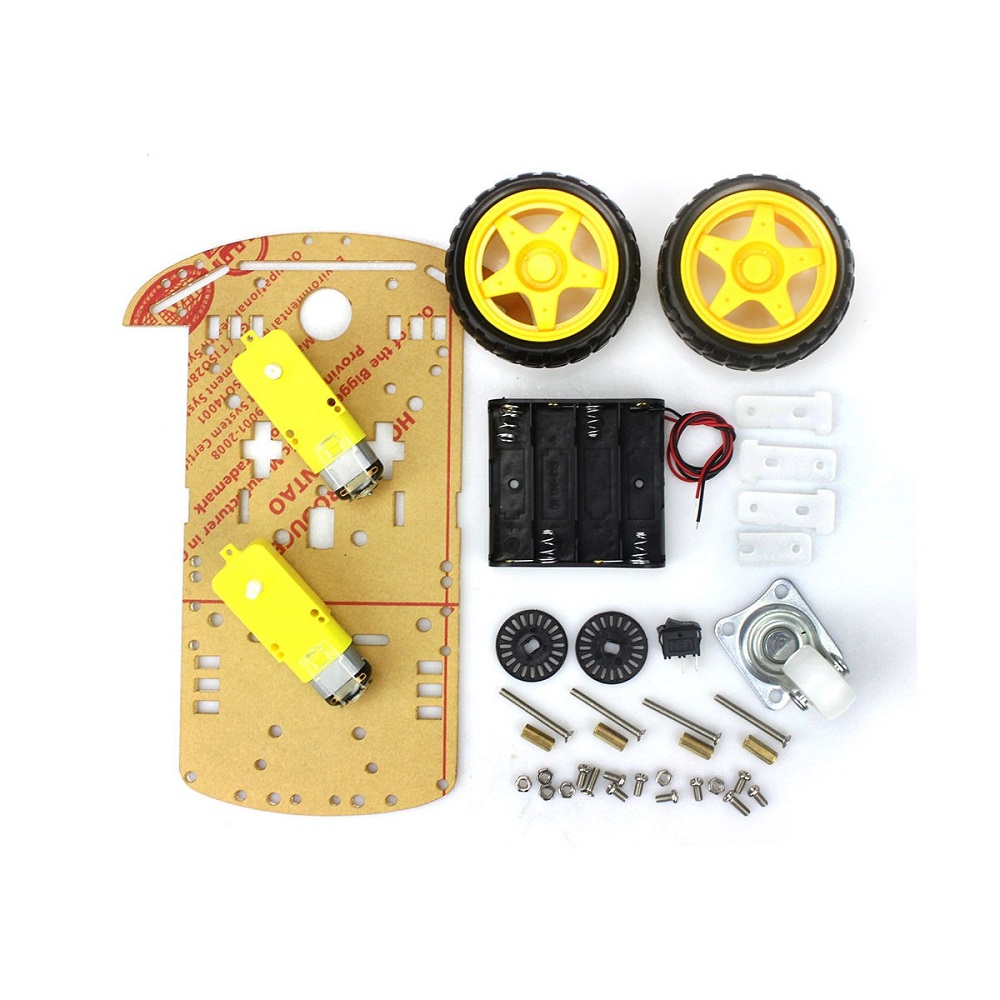

• 1 x Car chassis
• 2 x Gear motor
• 2 x Car tire
• 2 x Speed encoder
• 4 x Fastener
• 1 x Universal wheel
• 1 x Battery box (batteries not included)
• All necessary screw and nut.

Details and Specifications

For Motor:

Voltage DC 3V DC6V DC 7.2V Current 160mA 220mA 250mA No-load Speed 120 rpm/min 200 rpm/min 250 rpm/min Load Speed 100 rpm/min 175 rpm/min 210 rpm/min Torque 0.45 kg.cm 1.0 kg.cm 1.5 kg.cm Reduction Ratio 1:48 Noise =65dB Motor Size 65mm x 18mm x 22mm(L*W*H)

For Smart Car:

Voltage 3~9V Drive Mode 2WD Current 600mA Chassis Thickness 3mm Load =2kg Car Weight 285g Speed 0.6 m/s Car Size 220 x 175 x 65mm
