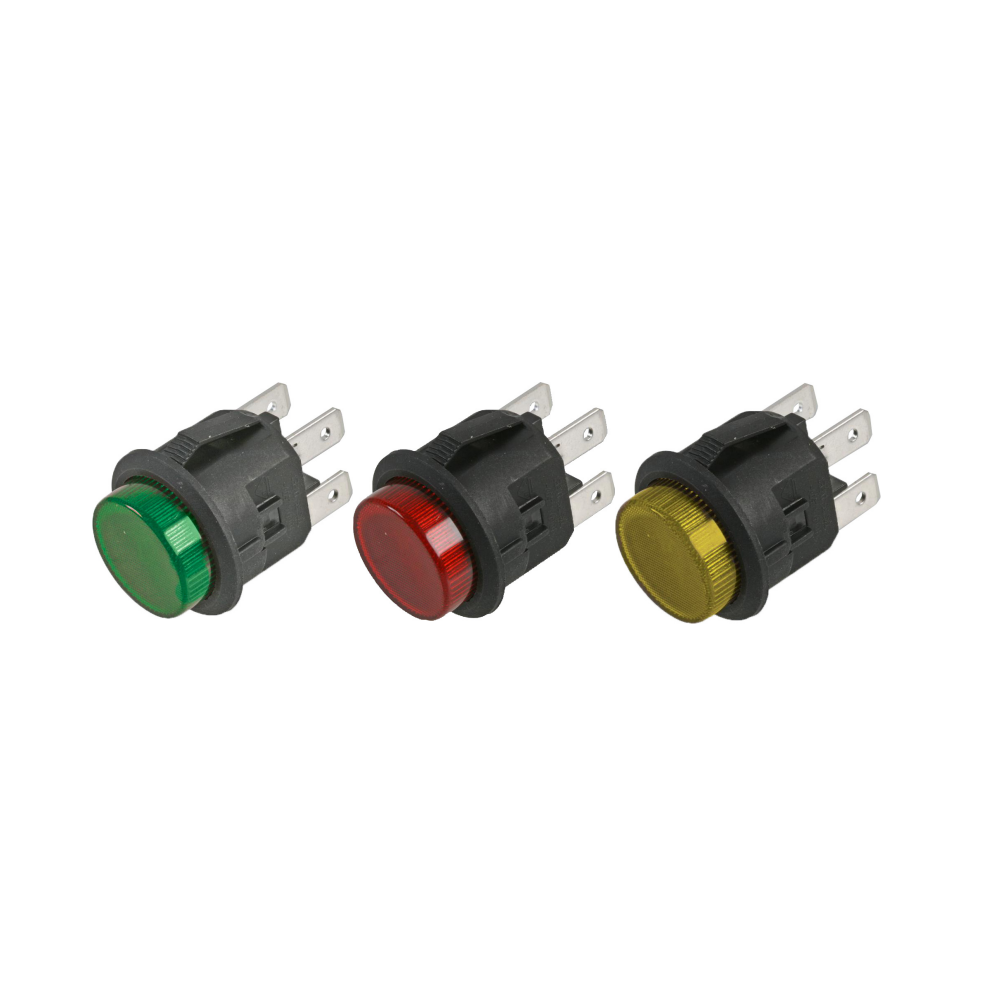

Pushbutton Switches DPST ON/OFF Red 20.5mm
Web N°: 25-9456
$3.95
Pushbutton Switches DPST ON/OFF Red 20.5mm
Out of stock

Pushbutton Switches DPST ON/OFF Red 20.5mm

Web N°: 25-9456
$3.95

This product is out of stock.


Description

  • Contact Configuration: DPST
  • Actuator: Illuminated, Round
  • Terminal: Quick Connect Tab
  • Lamp Voltage: 250VAC
  • Ambient Temperature: Terminal Side: -20°C to +85°C
  • Actuating Side: 20°C to +55°C
  • Storage Temperature: -30°C to +85°C
  • Atmospheric Humidity: 85% Max.
  • Actuating Force: 3 ~ 8N
  • Temperature Rise: 30°C Max. @ Terminal
  • Safety Approval: UL, VDE
  • Solder Ability: 350°C Max. 3s

See PDF for more information.

Download the document (PDF)
