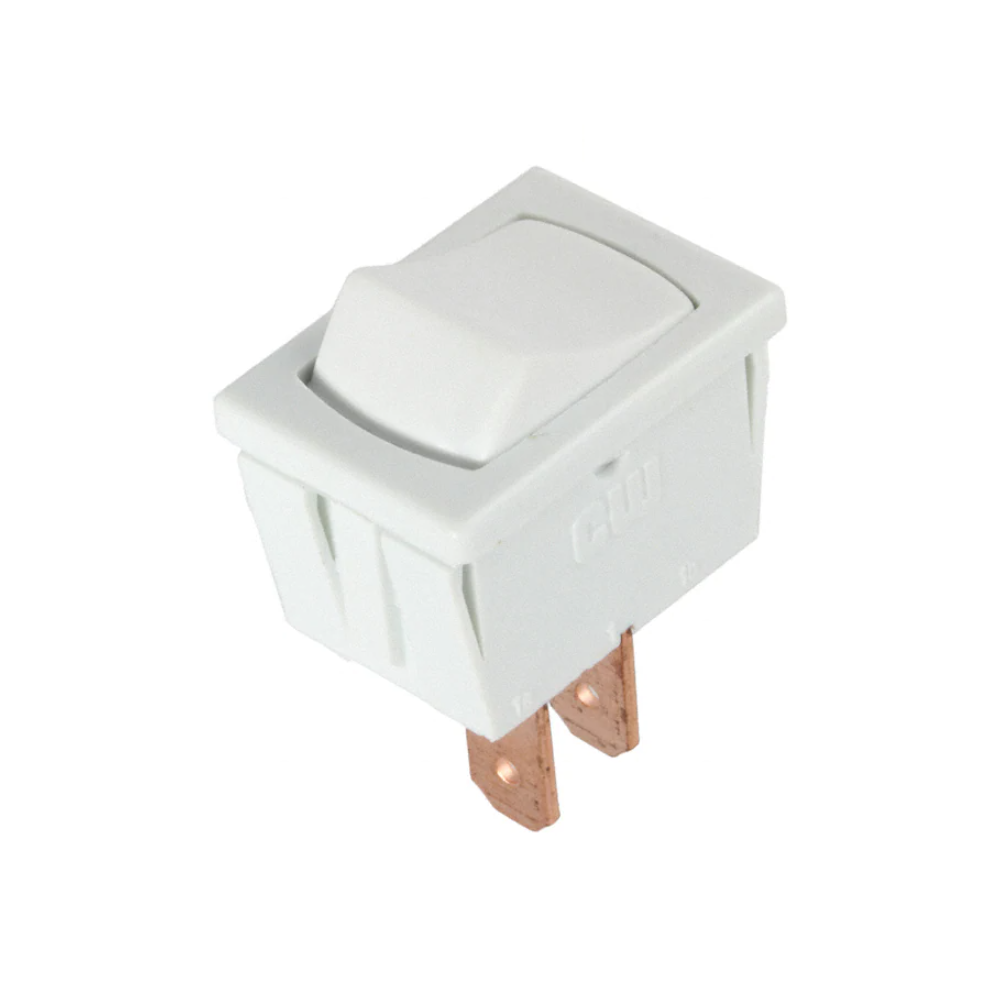

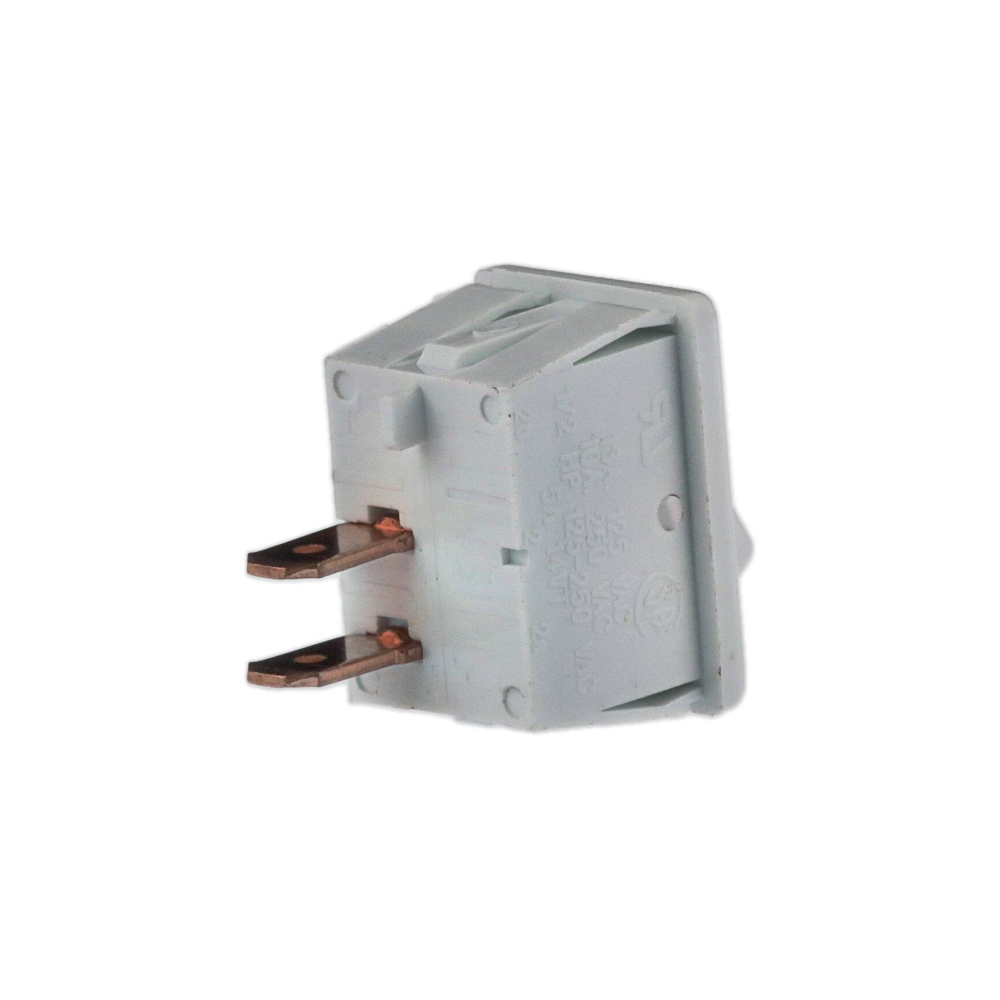

Rocker Switch SPST 13A 5A 125V Panel Mount Snap-In
Web N°: 25-2989
$2.50
Rocker Switch SPST 13A 5A 125V Panel Mount Snap-In
Web N°: 25-2989
$2.50
Description
- Series: 4000
- Mounting Type: Panel Mount, Snap-In
- Circuit: SPST
- Switch Function: On-Off
- Current Rating (Amps): 13A (AC), 5A (DC)
- Voltage Rating - AC: 125 V
- Voltage Rating - DC: 14 V
- Actuator Type: Concave (Curved)
- Color - Actuator/Cap: White
- Actuator Marking: No Marking
- Termination Style: Quick Connect - 0.187" (4.7mm)

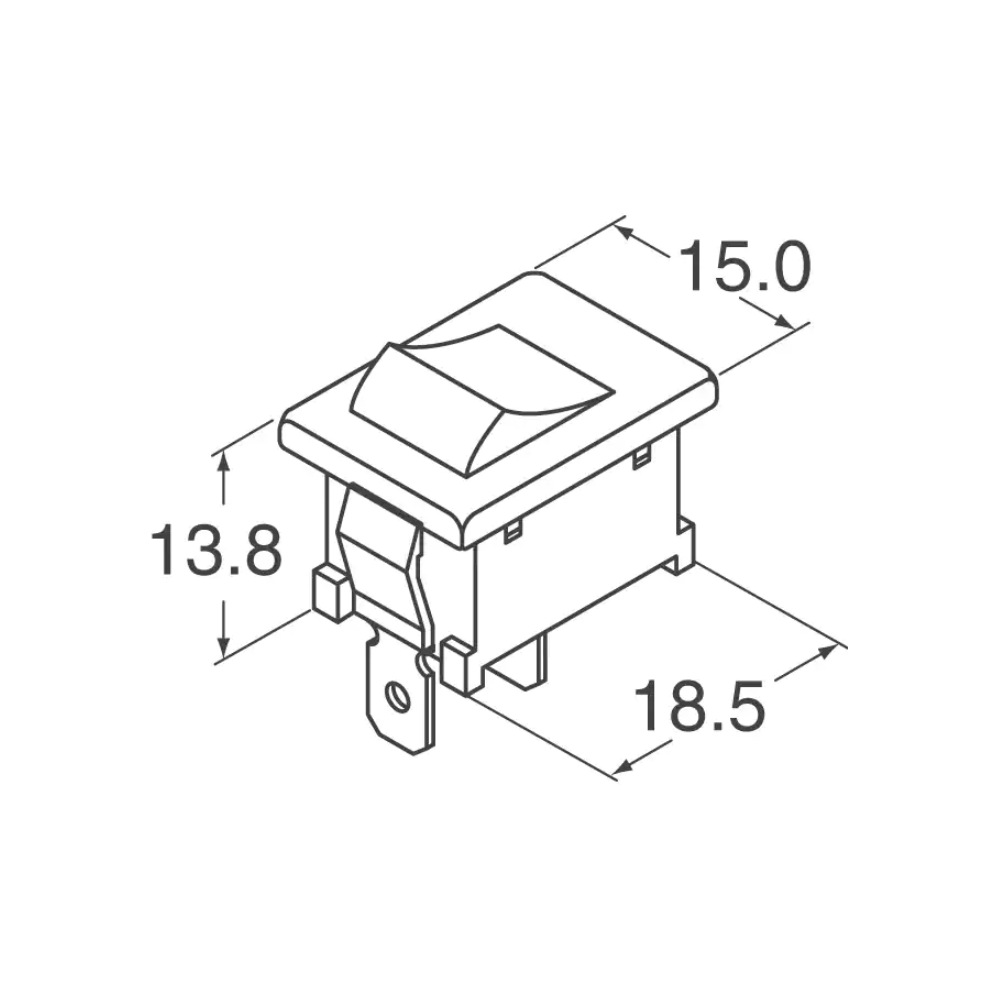

- Panel Cutout Dimensions: Rectangular - 19.20mm x 12.90mm
- Operating Temperature: -20°C ~ 105°C
- Mechanical Life: 100,000 Cycles
- Electrical Life: 25,000 Cycles
