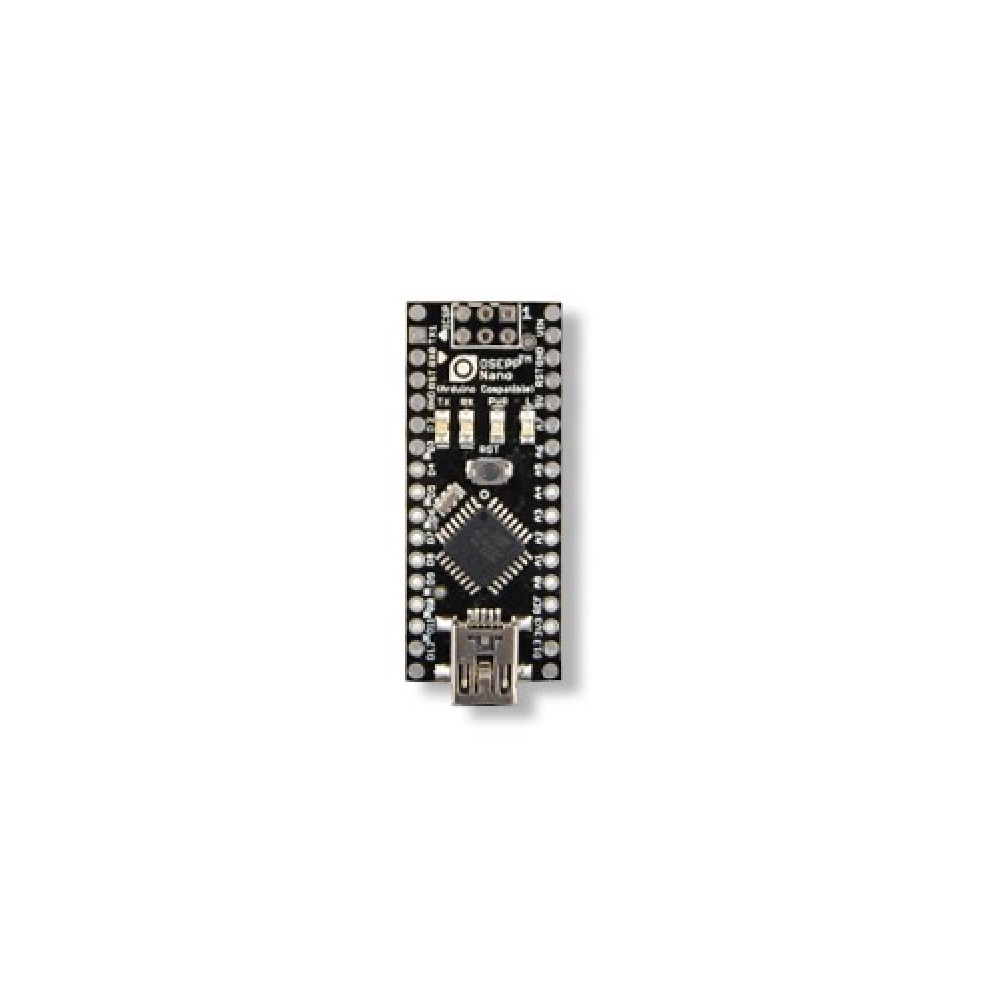

Arduino-Compatible Board - Nano

OSEPP

Web N°: 37-0151

$32.95

This product is out of stock.

For those not familiar with Arduino-type microcontrollers, they are like very small computers that can be given eyes and ears to interact with the world around them.
So there's a software aspect (writing or modifying programming code) and a hardware aspect (attaching components to the board to create an electronic circuit).
These two activities can be done at a basic level, or you can be more creative.
These high-quality, Arduino-compatible boards offer a wide range of I/O features, to maximize flexibility and control in your projects.
Based on the 8-bit AVR microcontroller, they are both code-efficient and power-efficient, for the best combination of speed and performance.
This is a downsized version of the Uno board with much of the same functionality.
The main workhorse is still the ATmega328P; however, the number of analog pins has gone up to eight.
The other difference is the lack of a DC power connector.
Built on the 'open-source electronics prototyping platform', and compatible with existing Arduino software lilbraries.
Single Mini-USB connector for both power and serial communication
Form factor is breadboard friendly Less than 1/3 the size of the Uno Two extra analog input pins compared to the Uno
This board is based on the Arduino Nano designed by Gravitech, and is released under the Creative Commons Attribution Share-Alike License.

Microcontroller: ATmega328P.
Clock speed: 16 MHz.
Flash memory: 32 KB.
SRAM: 2 KB.
EEPROM: 1 KB.
Operating voltage: 5V.
Input voltage: 6-12V Digital I/O pins: 14, including 6 for PWM.
Analog input pins: 8.
Other connectors: Mini-USB, serial communication (requires header), ICSP (requires header).
Dimensions: 44 x 18 x 18 mm.
Power source: Mini-USB.
