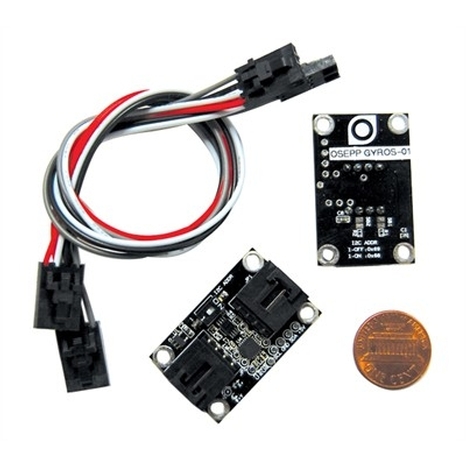

Gyroscope Sensor Module

Description

A 3-Axis gyroscope sensor. It utilizes the InvenSense MPU3050 Motion Processor Unit providing a full-scale range from +/- 250°/s up to +/-2000°/s of angular rate measurement while providing the highest robustness supporting 10 000 g of shock. The module uses the I2C interface for data communication. The I2C lines are packaged with the power and ground lines into a modular connector, which allows easy plug and play operation. There are two connectors on the module to enable daisy chaining of multiple I2C devices together. The Gyroscope Sensor Module combined with the Accelerometer Sensor Module can deliver a complete 6-axis sensor for full motion detection.

Details and Specifications

• I2C Addresses (7-bit): 0x68, 0x69.
• Form Factor: 23 mm x 36 mm.
• Power Consumption: 30.5 mW (Active); 0.025 mW (Sleep).
• Connector Pin Definition: Pin 1: Power, Pin 2: I2C Data, Pin 3: Ground, Pin 4: I2C Clock.
• Plug and play with I2C Expansion Shield.
• X-, Y-, Z- Axis angular rate gyros sensor.
• Programmable angular rate sensors with full-scale-range of +/-250, 500, 1000, or 2000 °/s.
• 16-bit ADC for digitizing sensor output, sample rate programmable from 8000 samples/sec down to 3.9 samples per second.
• Supports I2C interfacing with 2 programmable 7-bit address of 0x68 or 0x69.
• Provides pass-through connector to support daisy chaining of multiple sensors from the Sensor Module family.
• Provides 0.1” breakout points for power and I2C interface pins access.
