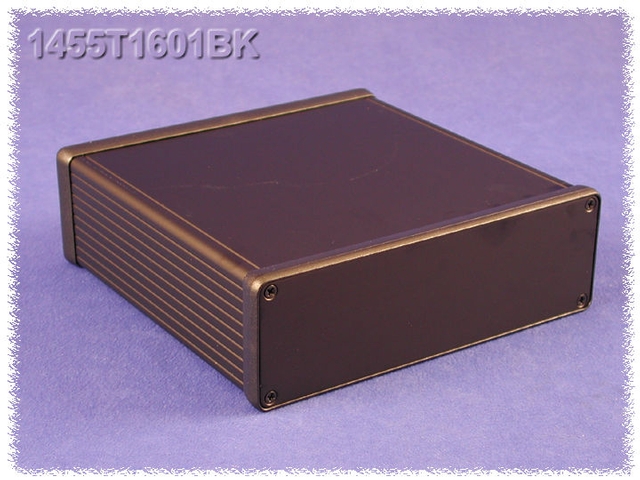

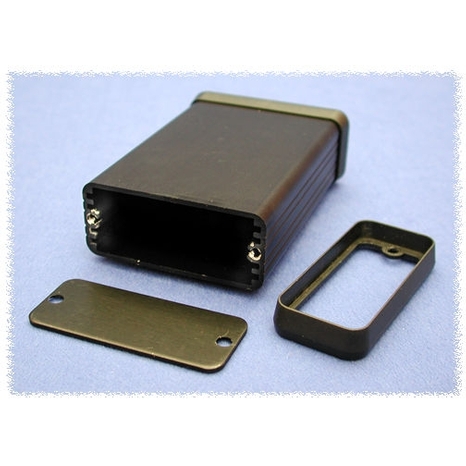

Designed to house P.C. boards or for equipment interfacing. Sized for standard Eurocards. P.C. boards mount horizontally by sliding into internal slots extruded into the enclosure body. Rugged body constructed from extruded aluminum with a minimum thickness of .06” (1.5 mm). Extruded body includes a slide removable "belly" plate Two aluminum end panels Two black ABS plastic bezels (your choice to install) Extruded, anodized aluminum body Includes all hardware
- end panel screws are #6 x 3/8" TTT
- thread rolling, steel screws with a #4 flat head phillips drive
- with zinc plate finish. Self adhesive rubber feet Dimensions: 6.3" L x 6.5" W x 2.03" H (160 x 165 x 51.5 mm)
