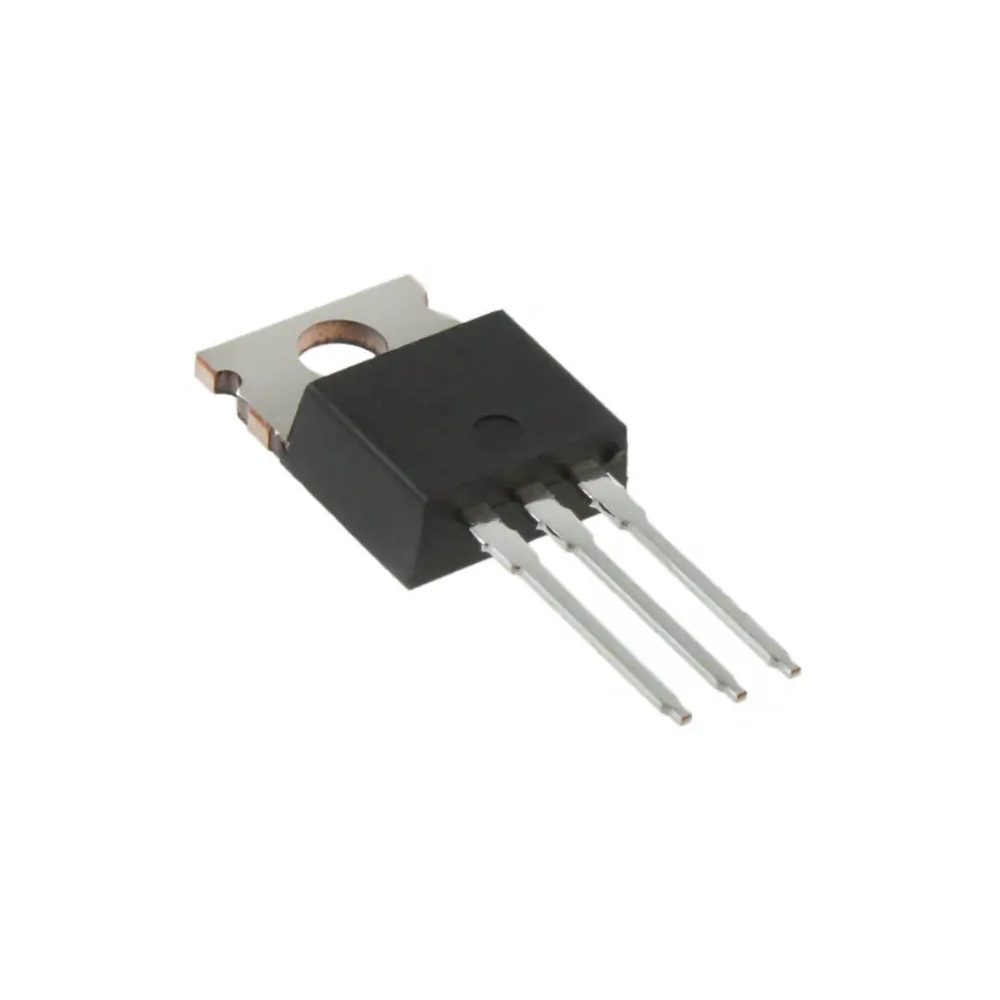

Mosfet N-Ch 600V 6.2A TO-220 - IRFBC40PBF
Web N°: 25-2761
$2.95
Mosfet N-Ch 600V 6.2A TO-220 - IRFBC40PBF

Mosfet N-Ch 600V 6.2A TO-220 - IRFBC40PBF

Web N°: 25-2761
$2.95

Quantity available : 22

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Equivalent to NTE 2379.
  • FET Type: N-Channel
  • Technology: MOSFET (Metal Oxide)
  • Current - Continuous Drain (Id) @ 25°C: 6.2A (Tc)
  • Drive Voltage (Max Rds On, Min Rds On): 10V
  • Rds On (Max) @ Id, Vgs: 1.2Ohm @ 3.7A, 10V
  • Vgs(th) (Max) @ Id: 4V @ 250µA
  • Vgs (Max): ±20V
  • Power Dissipation (Max): 125W (Tc)
  • Operating Temperature: -55°C ~ 150°C (TJ)
  • Mounting Type: Through Hole
  • Drain to Source Voltage (Vdss): 600 V
  • Gate Charge (Qg) (Max) @ Vgs: 60 nC @ 10 V
  • Input Capacitance (Ciss) (Max) @ Vds: 1300 pF @ 25 V
Download the document (PDF)
