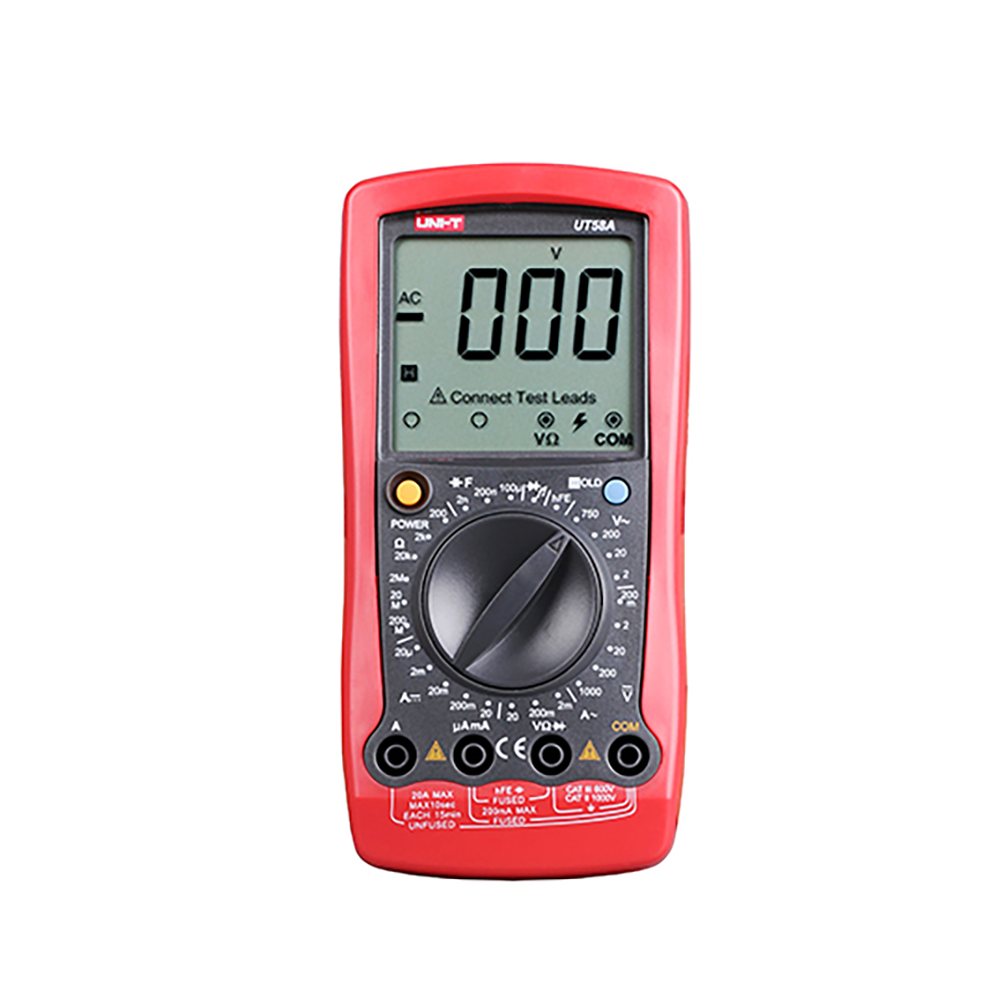

UT58A General Digital Multimeter
UNI-T
Web N°: 16-0215
$69.95
UT58A General Digital Multimeter
UNI-T
Web N°: 16-0215
$69.95
Description
UT58A is a safe and reliable manual range digital multimeter that is easy to operate. Its large 60mm x 54mm LCD screen conveniently displays measurement results. This series digital multimeter satisfies a variety of applications in both electronics and electrical fields.
? 2000 display count, refresh rate 2~3 times/s
? Function symbols and test lead connection indication
? Transistor measurement
? Diode and continuity buzzer; auto power off; overload protection
? Data hold; 20A AC/DC current measurement
Details and Specifications
| Specifications | Range | UT58A |
| DC voltage (V) | 200mV/2V/20V/200V/1000V | ±(0.5%+1) |
| 200mV/20V/200V/1000V | ||
| AC voltage (V) | 2V/20V/200V/750V | ±(0.8%+3) |
| 2V/200V/1000V | ||
| 2V/20V/200V/1000V | ||
| DC current (A) | 20µA/2mA/20mA/200mA/20A | ±(0.8%+1) |
| 2mA/20mA/200mA/20A | ||
| 2mA/200mA/20A | ||
| AC current (A) | 2mA/200mA/20A | ±(1%+3) |
| 20mA/200mA/20A | ||
| Resistance (O) | 200O/2kO/20kO/2MO/20MO/200MO | ±(0.8%+1) |
| 200O/2kO/20kO/2MO/20MO | ||
| 200O/2kO/200kO/2MO/20MO | ||
| 200O/2kO/20kO/2MO/200MO | ||
| Capacitance (F) | 2nF/200nF/100µF | ±(4%+3) |
| 20nF/200nF/2µF/100µF | ||
| 2nF/20nF/2µF/20µF | ||
| Inductance (H) | 2mH/20mH/200mH/20H | |
| Frequency (Hz) | 2kHz/20kHz | |
| 20kHz | ||
| Temperature (°C) | -40°C~1000°C | |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 60mm x 54mm | |
| Product color | Red and grey | |
| Product net weight | 350g | |
| Product size | 179mm x 88mm x 39mm | |
