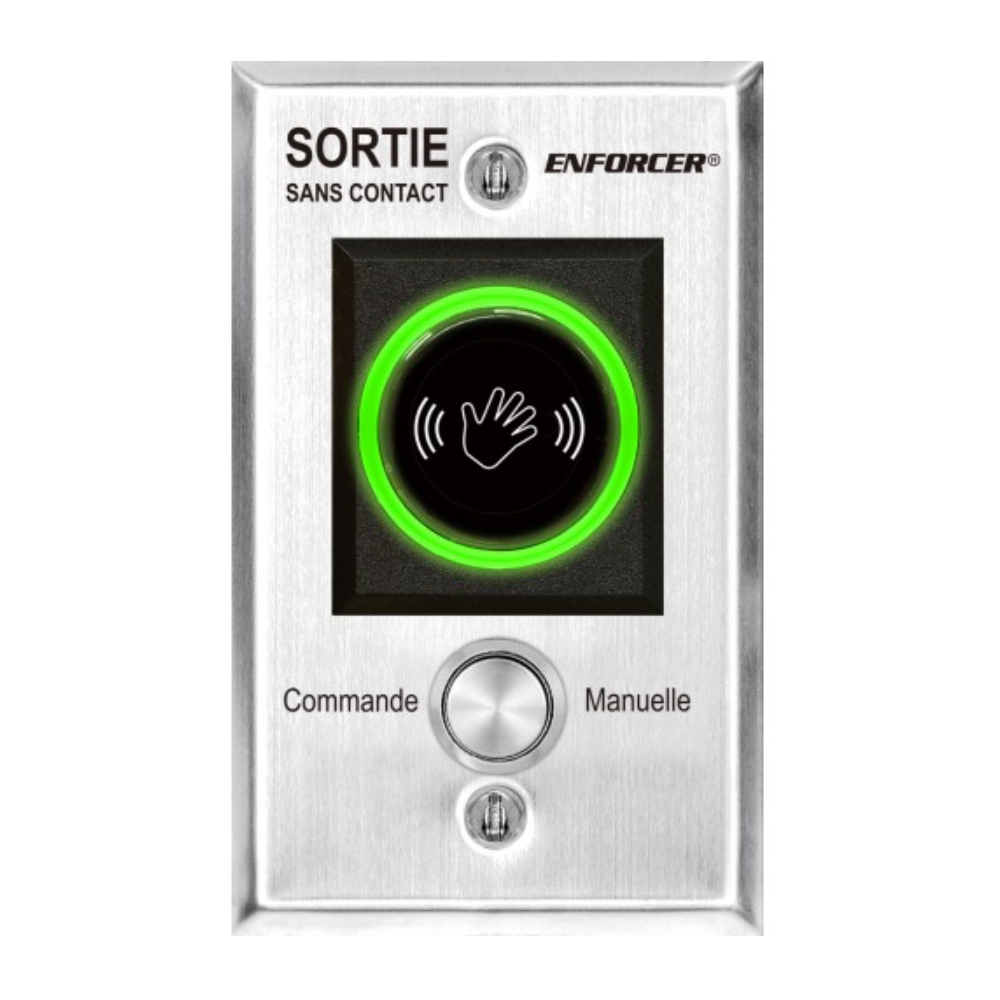

Wave-To-Open Sensor with Manual Override Button - French

Description

The ENFORCER non-contact opening request sensor uses infrared technology to allow the user to exit an area protected by an access control system simply with a wave of the hand. As the function is contactless, this detector is ideal for hospitals, medical centers, laboratories, clean rooms, schools, factories, and offices.

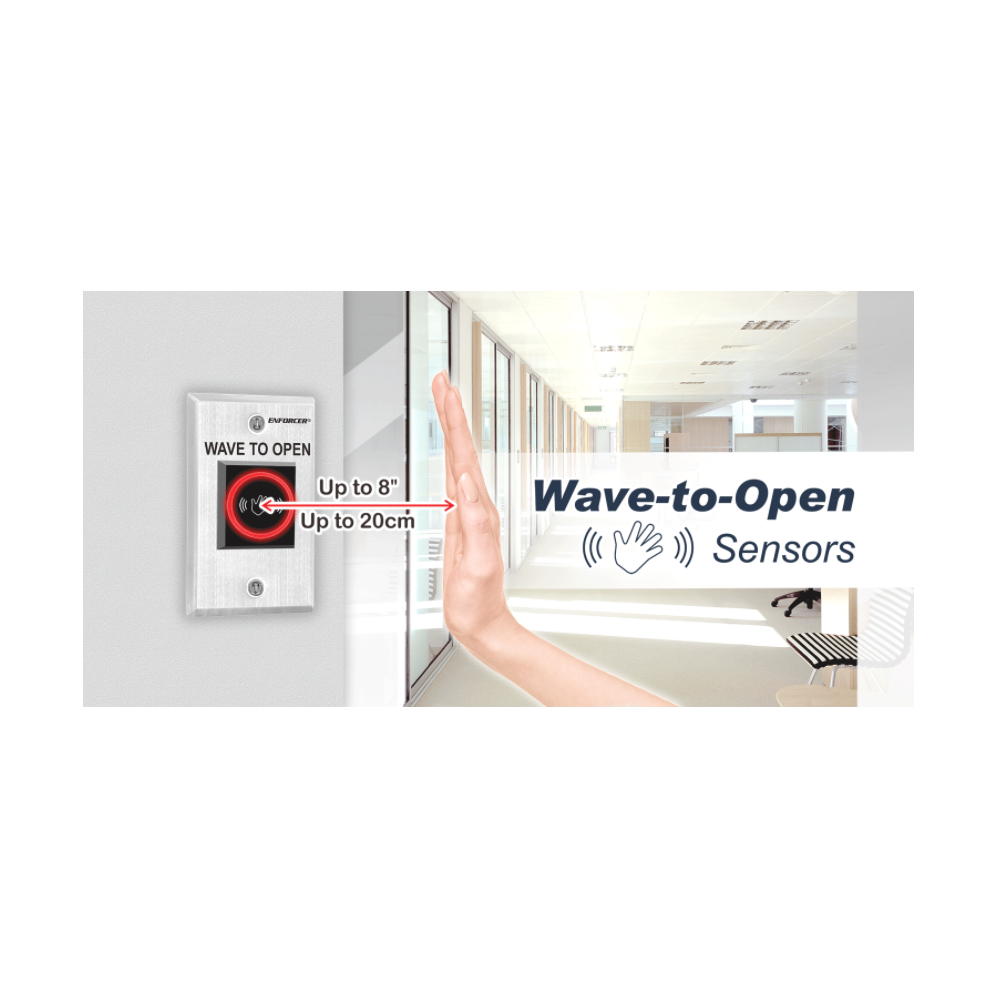

• Detection range up to 23/8"-8" (6~20 cm)
• Single stainless steel plate
• 3A relay, adjustable from 0.5 to 30 seconds, toggle or as long as hand is near the sensor
• Screwless quick connect terminal block
• LED ring illuminating the sensor for easy identification.
• Selectable two-color LED ring (red to green, or green to red) to indicate that the sensor has been triggered.
• Adds a manual override button as an auxiliary device for the sensor or detector.

Details and Specifications

• Operating Voltage: 12~24 VAC/VDC
• Current Draw: 120mA@12VDC
• Relay Type: Form C dry contact, 3A@24VDC
• Override Button - Switching capacity: 3A@24VDC
• Override Button - Mechanical life: 500,000 cycles
• Response Time: 10ms
• LEDs - Standby: Red*
• LEDs - Triggered: Green*
• Output Time: Adjustable, 0.5~30 sec., toggle, or as long as sensor is triggered
• Range: Adjustable, 2-3/8"~8" (6-20 cm)
• Operating Temperature: -4°~131° F (-20°~55° C)
• Weight: 3.9-oz (110g)
