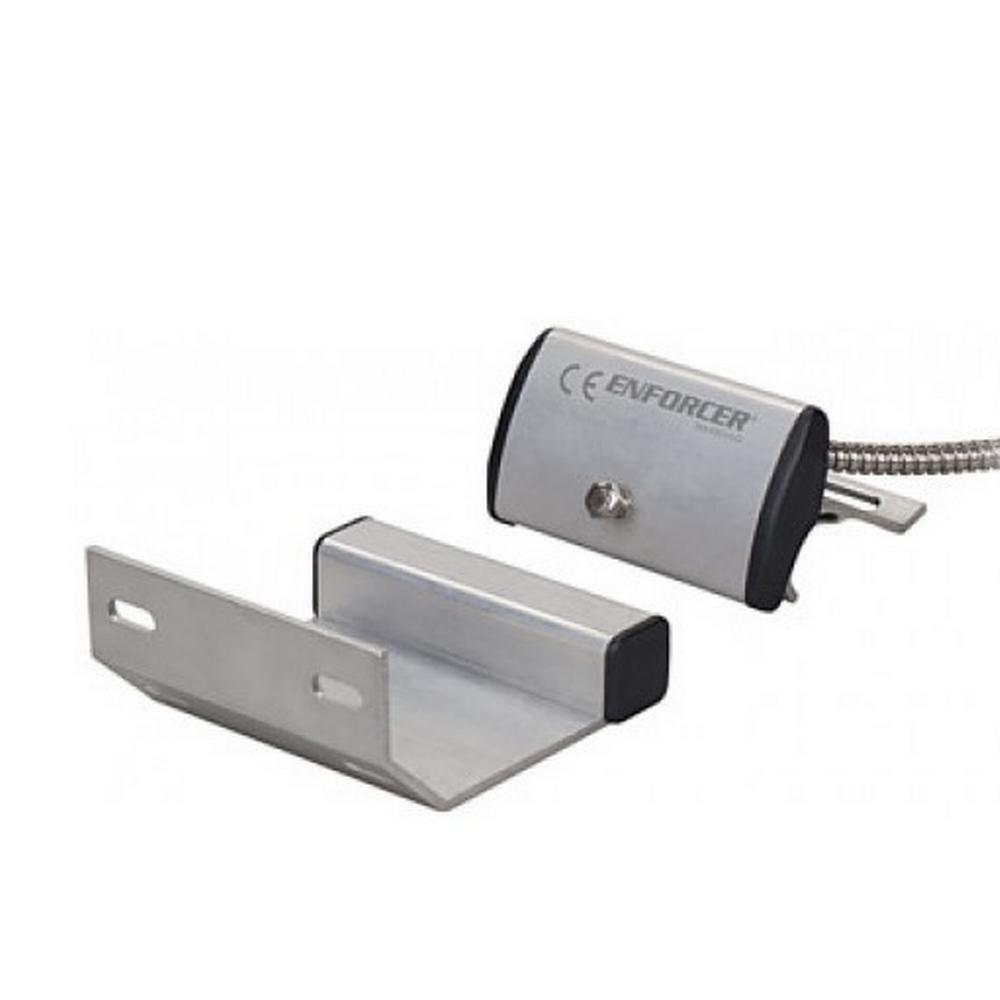

Track-Mount Overhead Door Magnetic Contact Switch - NO/NC x2
SECO-LARM
Web N°: 14-0525
$59.95
SM-4201-L6Q

Track-Mount Overhead Door Magnetic Contact Switch - NO/NC x2

SECO-LARM
Web N°: 14-0525
$59.95

Quantity available : 2

Share
Add to my wish list

* Prices are in Canadian dollars. Taxes and shipping not included.

Our Store

Description

  • Model Number: SM-4201-L6Q
  • Used for overhead doors in both industrial and residential situations where a wide gap is present
  • Adjustable to fit most door-channel widths
  • Rugged aluminum housing
  • 36? (91cm) Wire leads enclosed in armored cable
  • Contact Type: DPDT, iridium-plated to have a high melting point and Vickers hardness for higher power handling and longer expected life
  • For open/closed loop circuits
  • 3? (76mm) Gap
  • IP65 Weatherproof
  • Mounting bracket included
  • Optional L-bracket (SM-8201-LWQ) available for door channels 2-1/2"~4" (62x102 mm), dimensions: 3?x2?x1-1/4? (76x51x32 mm)

Details and Specifications

Loop Type Open/Closed Loop
Operation Gap 3" (76mm)
Material - Case Aluminum
Material - Terminals 36" (91cm) armored leads
Contacts Iridium-plated
Contact Rating 0.1A@100VDC (max), 1.0A@10VDC (max), 10W (max)
Operating Temperature -15°~160°F (-25°~70°C)
Switch Cycles 50 Million (0.1mA@5VDC)
Switch Dimensions 3-7/64" x 2-19/32" x 1-13/16" (79 x 66 x 46 mm)
Magnet Dimensions 3-7/32" x 3-17/32" x 1-3/4" (82 x 90 x 44 mm)
Magnet Type Ferrite
IP Rating Weatherproof IP65
Download the document (PDF)
