12/24 VDC Universal Door Strike
Web N°: 14-0068
$149.95
12/24 VDC Universal Door Strike
Web N°: 14-0068
$149.95
Description
- Can be used with virtually any cylindrical-locking system and can be configured for use in wood, aluminum, or metal doors.

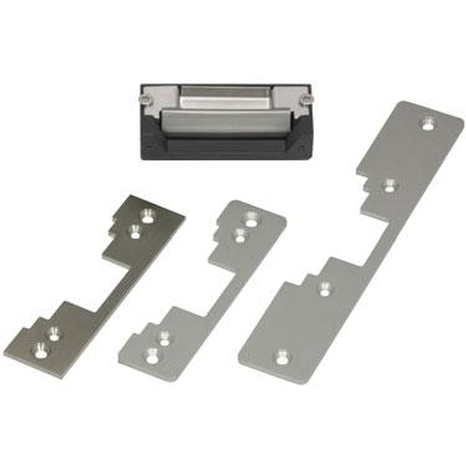

- Included are three different-sized faceplates that can be easily installed on the strike to match the specific type of door frame.
- UL 1034 Burglary.
- Field selectable for fail-safe or fail-secure operation.
- Field selectable dual-voltage 12/24 VDC.
- Powered by a solenoid.
- Reversible non-handed design fits either right-hand or left-hand doors.
- Low profile: strike is only 1 1/4” deep for use with hollow aluminum frames.
- Includes 3 faceplates for nearly any type of door: Aluminum 4 7/8” x 1 1/4” (124mm x 32mm); Hollow Metal 4 7/8” x 1 1/4” (124mm x 32mm); Wood 7 15/16” x 1 7/16” (202mm x 37mm)
- Operating voltage: 12 or 24 VDC +/-15%
- Current draw: 280mA @ 12VDC; 140mA @ 24VDC
- Operating temp: 14° ~ 113° F (-10° ~ 45° C)
- Operating humidity: 85% +/-15%
