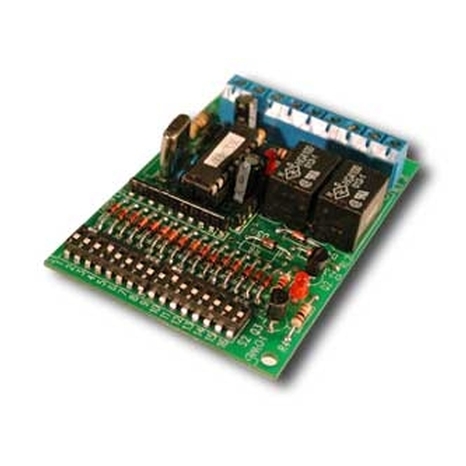

Triple Relay Sequential Timer
Web N°: 14-0100
$54.95
Triple Relay Sequential Timer
Web N°: 14-0100
$54.95
Description
- Three adjustable sequential timers controlled by microprocessor:
- Trigger delay: 0-7 seconds
- Timer #1: 0-63 seconds
- Timer #2: 0-63 seconds
- Two SPDT relay output, 2 A at 24 VDC contact
- Operates from 12 or 24 VDC selectable by DIP switch #16
- Electrical consumption:
- * Idle: 12 mA at 12 VDC
- * Active: 70 mA at 12 VDC
- Negative trigger
- LED status indicator
- Ease of installation with supplied adhesive mounting tape
- Dimensions:
- Length: 3" (76mm)
- Width: 2.10" (53mm)
- Height: 0.65" (17mm)
