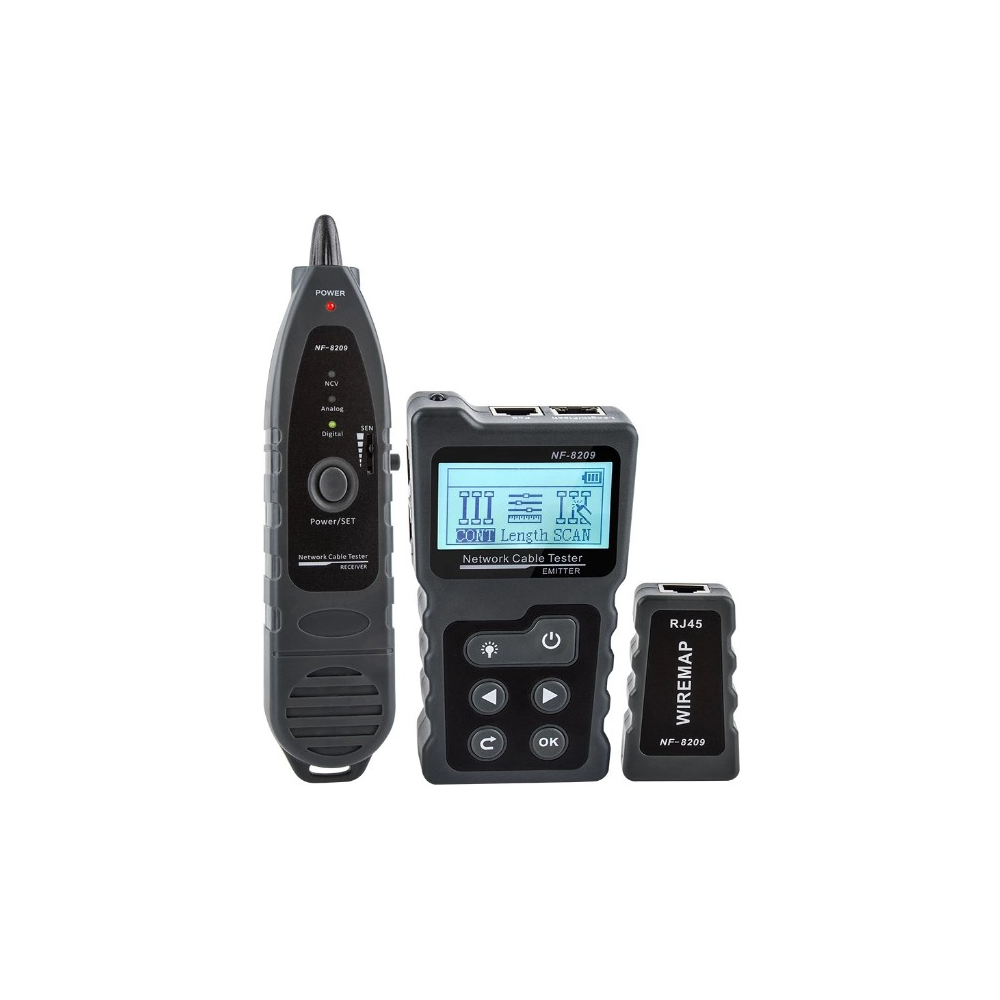

The tester has three modes of digital mode, analog mode and PoE mode for options to track cable easily, which means it is equipped with the most powerful cable location technologies for any work environment. Besides, it includes cable length measurement, cable faults testing, PoE testing, hub blink and NCV function, all of these makes it a must-have tool for cabling engineers.
Features:
Emitter Testing Function: including cable continuity testing, cable length measurement, cable scan, and PoE test.
Three Scan Modes Switchable: it has digital mode, analog and PoE mode for options to track cable.
PSE Type Distinguish: identify the type of PSE, it is AF or AT standard.
POE Test Range: test the information of the DC5~60V standard / non-standard PoE device.
Non-contact Voltage Detecting: the receiver can be used to detect the AC voltage of household electrical wiring.
Illuminate Function: both the emitter and the receiver designed with lamp for auxiliary lighting up the working areas during operation.
Other Settings: setting language(Chinese/English), backlight time(15s/30s/60s/on/off), auto-off time(15mins/30mins/1h/off), contrast adjustment and version checking.
Specification
Material: ABS
Package Weight: 500g / 17.64oz
Package Size: 23 * 17 * 5cm / 9.06 * 6.69 * 1.97in
Emitter Parameters & Functions:
LCD Display: 128*64 dot-matrix with backlight
Power Supply: 3 * 1.5V AAA battery (NOT included)
Low Battery Warning: 2.7V
Auto-off Time: 15min/30min/60min/OFF
Voltage Protection: DC48V, 5mA
Max. Working Current: <150mA
Size: 130 * 70 * 28mm / 5.12 * 2.76 * 1.10in
WIREMAP TEST:
Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)
Test with Switch Directly: Yes
Max. Range: 600m
LENGTH TEST:
Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)
Test Range: 2.5~200m
Accuracy: ±1.6m
Breakage Location: Yes
SCAN TEST:
Cable Type: CAT5e, CAT6, CAT6a (STP & UTP)
Max. Signal Voltage: 9±1Vp-p
Frequency: 130KHz
Analog/Digital Mode: Yes
Max. Range: 600m
POE TEST:
Test Range: DC5~60V standard / non-standard PoE switch
Voltage Display: Yes
PSE Type: Standard: IEEE 802.3af/at; Non standard
Receiver Parameters:
Sensitivity Adjustable: Yes
AC Voltage Detecting: Yes
Lamp: Yes
Battery Type: 1 * 9V battery (NOT included)
Low Battery Warning: 6±0.5V
Max. Working Current: <100mA
Size: 210 * 43 * 27mm / 8.27 * 1.69 * 1.06in
Remote Parameters:
Wiremap Port: RJ45
Voltage Protection: DC48V, 5mA
Size: 65 * 37 * 23mm / 2.56 * 1.46 * 0.91in
Packing List:
1 * Emitter
1 * Receiver
1 * Remote
1 * Earphone
1 * Crocodile Clip Test Line
2 * Cable Lead
1 * Carry Bag
1 * Manual (English)
